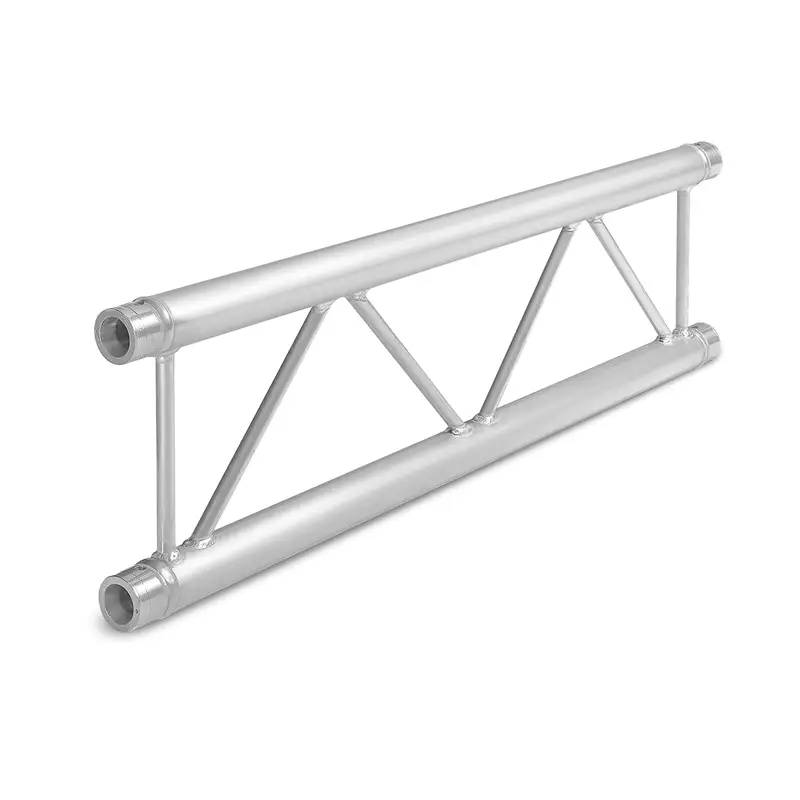

BT34 truss is constructed of main chords (50 x 2 mm) and diagonal members (20 x 2 mm). Equipped with the CCS6 conical coupling system, the BT34 truss is fast and easy to assemble. The BT34 truss can be found in rental fleets all over the globe, where its low volume and flexible application possibilities makes it the ideal truss for exhibitions and low intensity rental jobs. BT34 truss is available in ladder, triangular and square profiles and a range of corners and accessories.
| Standard available lengths and codes | |||||
|---|---|---|---|---|---|
| Metres | Feet | Weight (kg) | Weight (lbs) | Code | Item Number |
| 0,25 | 0,82 | 1,03 | 2.27 | BT32-L025 | 111080068 |
| 0,29 | 0,95 | 1,09 | 2.40 | BT32-L029 | 111080069 |
| 0,50 | 1,64 | 1,50 | 3.31 | BT32-L050 | 111080072 |
| 0,71 | 2,33 | 1,91 | 4.21 | BT32-L071 | 111080075 |
| 0,75 | 2,46 | 1,97 | 4.34 | BT32-L075 | 111080076 |
| 1,00 | 3,28 | 2,47 | 5.45 | BT32-L100 | 111080080 |
| 1,50 | 4,92 | 3,44 | 7.58 | BT32-L150 | 111080083 |
| 2,00 | 6,56 | 4,40 | 9.70 | BT32-L200 | 111080089 |
| 2,50 | 8,20 | 5,36 | 11.82 | BT32-L250 | 111080092 |
| 3,00 | 9,84 | 6,33 | 13.96 | BT32-L300 | 111080095 |
| 4,00 | 13,12 | 8,25 | 18.19 | BT32-L400 | 111080099 |
| Other Lengths available on request | |||||
| Technical Specifications – BT32 Series | |
|---|---|
| Alloy | EN AW 6082 T6 |
| Main Chords | 50 x 2 mm |
| Diagonal Members | 20 x 2 mm |
| Coupling System | CCS6 |
|
BT32 – Allowable Loading (Span supported on top chord.) |
||||||||||
|---|---|---|---|---|---|---|---|---|---|---|
|
Uniformly Distributed Load |
||||||||||
|
SPAN |
UDL |
DEFLECTION |
CPL |
DEFLECTION |
||||||
|
m |
ft |
kg/m |
lbs/ft |
mm |
inch |
kgs |
lbs |
mm |
inch |
|
|
1 |
3,3 |
979,7 |
659,2 |
2 |
0,1 |
979,7 |
2162,2 |
1 |
0,0 |
|
|
2 |
6,6 |
345,0 |
232,1 |
1 |
0,1 |
345,0 |
761,4 |
1 |
0,0 |
|
|
3 |
9,8 |
135,0 |
90,8 |
3 |
0,1 |
203,0 |
448,0 |
2 |
0,1 |
|
|
4 |
13,1 |
64,0 |
43,1 |
4 |
0,2 |
128,0 |
282,5 |
3 |
0,1 |
|
|
5 |
16,4 |
27,0 |
18,2 |
4 |
0,2 |
67,0 |
147,9 |
3 |
0,1 |
|
|
6 |
19,7 |
12,0 |
8,1 |
4 |
0,1 |
36,0 |
79,5 |
3 |
0,1 |
|
|
1 inch = 25,4 mm | 1m = 3.28 ft | 1 lbs = 0,453 kg |
Spans must be supported at each end. Loads must be suspended from bottom chord only. |
|||||||||
|
BT32 – Allowable Loading (Top chord sideways supported each metre.) |
||||||||||
|---|---|---|---|---|---|---|---|---|---|---|
|
Uniformly Distributed Load |
||||||||||
|
SPAN |
UDL |
DEFLECTION |
CPL |
DEFLECTION |
||||||
|
m |
ft |
kg/m |
lbs/ft |
mm |
inch |
kgs |
lbs |
mm |
inch |
|
|
4 |
13,1 |
243,2 |
163,7 |
18 |
0,7 |
459,8 |
1014,8 |
15 |
0,6 |
|
|
5 |
16,4 |
176,3 |
118,6 |
28 |
1,1 |
381,7 |
842,3 |
23 |
0,9 |
|
|
6 |
19,7 |
123,2 |
82,9 |
41 |
1,6 |
325,5 |
718,3 |
33 |
1,3 |
|
|
7 |
23,0 |
90,6 |
61,0 |
55 |
2,2 |
283,0 |
624,7 |
44 |
1,7 |
|
|
8 |
26,2 |
69,2 |
46,6 |
72 |
2,9 |
249,8 |
551,2 |
58 |
2,3 |
|
|
9 |
29,5 |
54,4 |
36,6 |
92 |
3,6 |
222,9 |
492,0 |
73 |
2,9 |
|
|
10 |
32,8 |
43,7 |
29,4 |
113 |
4,5 |
200,7 |
443,0 |
91 |
3,6 |
|
|
11 |
36,1 |
35,8 |
24,1 |
137 |
5,4 |
182,1 |
401,8 |
110 |
4,3 |
|
|
12 |
39,4 |
29,8 |
20,0 |
163 |
6,4 |
166,1 |
366,5 |
131 |
5,1 |
|
|
1 inch = 25,4 mm | 1m = 3.28 ft | 1 lbs = 0,453 kg |
Spans must be supported at each end. Loads must be suspended from bottom chord only. |
|||||||||
|
BT32 – Allowable Loading (Top chords sideways supported every 2 metres.) |
||||||||||
|---|---|---|---|---|---|---|---|---|---|---|
|
Uniformly Distributed Load |
||||||||||
|
SPAN |
UDL |
DEFLECTION |
CPL |
DEFLECTION |
||||||
|
m |
ft |
kg/m |
lbs/ft |
mm |
inch |
kgs |
lbs |
mm |
inch |
|
|
4 |
13,1 |
84,6 |
56,9 |
5 |
0,2 |
169,1 |
373,3 |
4 |
0,2 |
|
|
5 |
16,4 |
53,3 |
35,9 |
8 |
0,3 |
133,3 |
294,1 |
7 |
0,3 |
|
|
6 |
19,7 |
36,3 |
24,4 |
12 |
0,5 |
109,0 |
240,6 |
10 |
0,4 |
|
|
7 |
23,0 |
26,1 |
17,6 |
17 |
0,7 |
91,3 |
201,6 |
13 |
0,5 |
|
|
8 |
26,2 |
19,5 |
13,1 |
22 |
0,9 |
77,8 |
171,7 |
17 |
0,7 |
|
|
9 |
29,5 |
14,9 |
10,0 |
27 |
1,1 |
67,0 |
148,0 |
22 |
0,9 |
|
|
10 |
32,8 |
11,6 |
7,8 |
34 |
1,3 |
58,2 |
128,4 |
27 |
1,1 |
|
|
11 |
36,1 |
9,2 |
6,2 |
41 |
1,6 |
50,8 |
112,0 |
33 |
1,3 |
|
|
12 |
39,4 |
7,4 |
5,0 |
49 |
1,9 |
44,4 |
97,9 |
39 |
1,5 |
|
|
1 inch = 25,4 mm | 1m = 3.28 ft | 1 lbs = 0,453 kg |
Spans must be supported at each end. Loads must be suspended from bottom chord only. |
|||||||||
