F34 Square Truss Adjustable Book-Hinge Connection

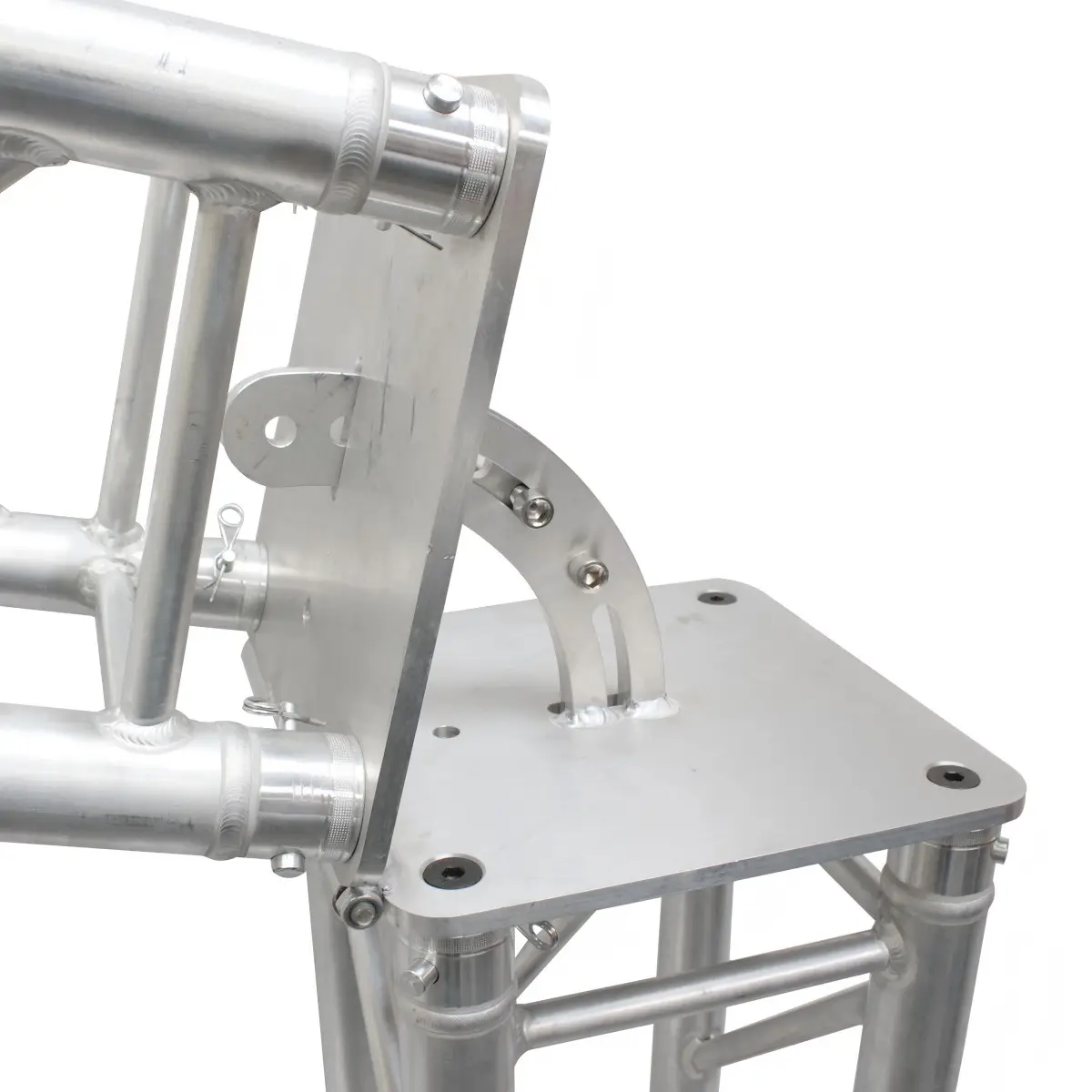

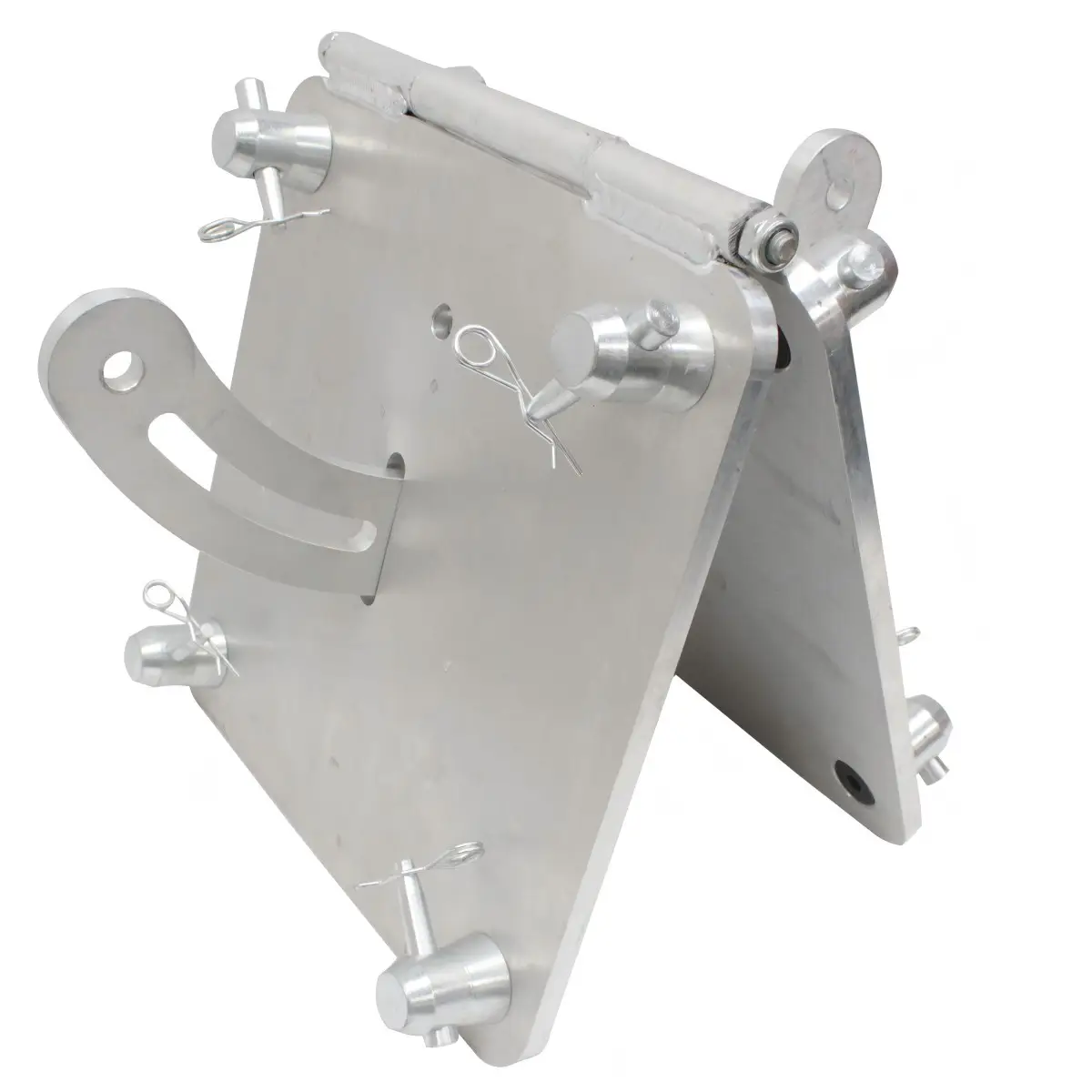

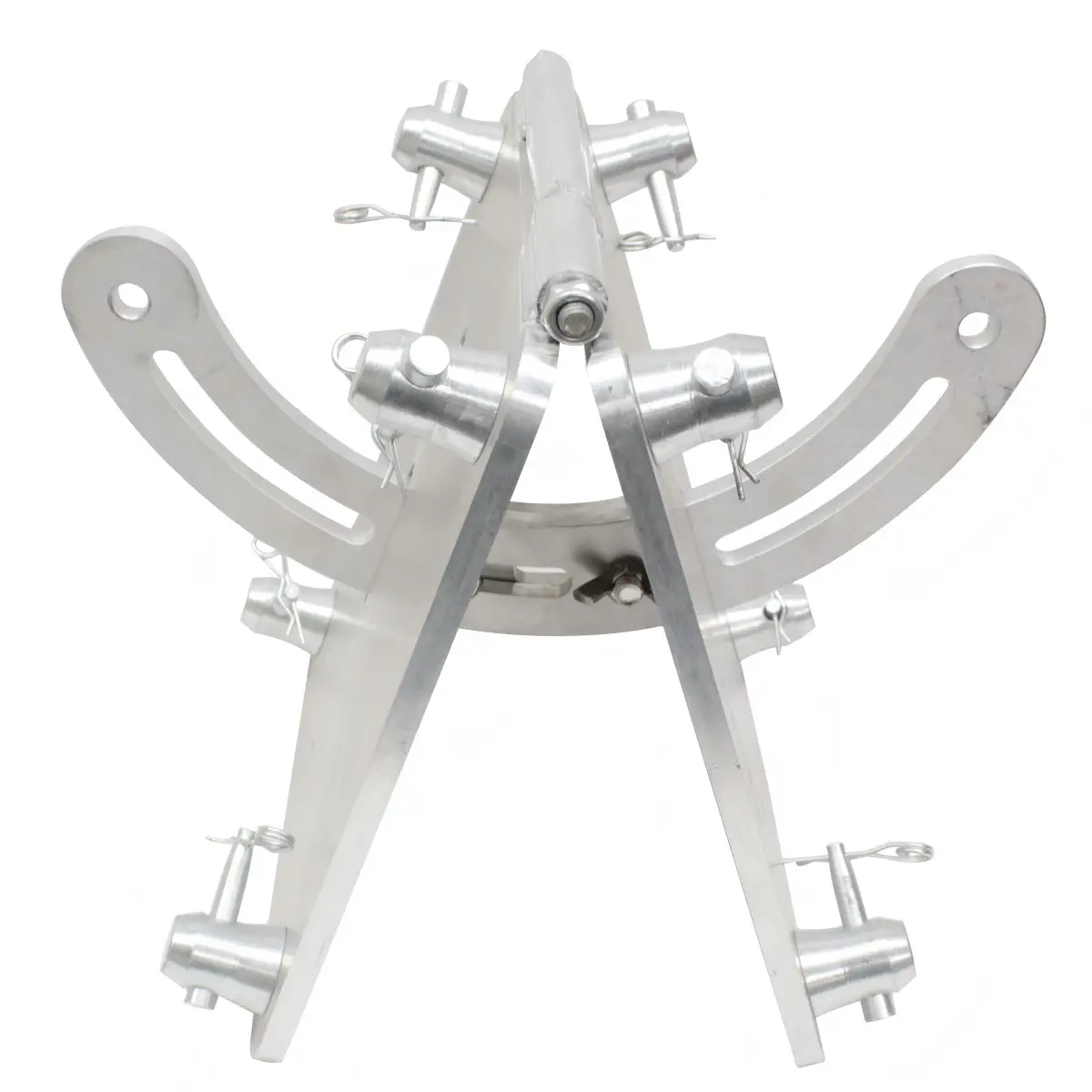

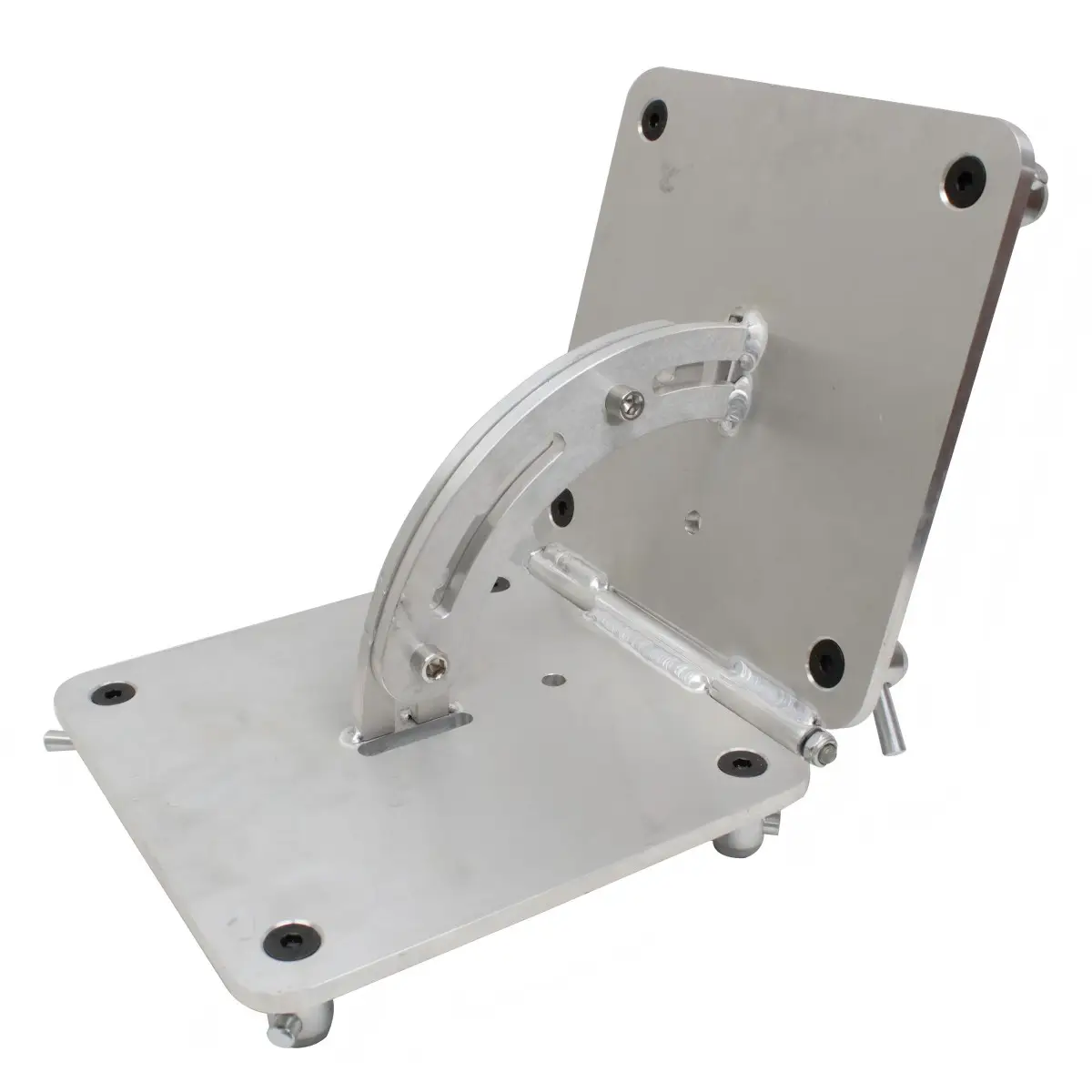

The BT-BOOKHINGE adjusts from 0° to 180° for unique truss construction projects. There is a built-in adjustable arm to lock the desired angle between sections of truss for unique builds.

At the heart of the system is square truss that utilizes a standard conical connector system, which easily mates with other brands of trussing of the same size and connector style, and is available in a variety of lengths to suit your designs. It also works with different types of corners, base plates, connectors and accessories that add stability while expanding on limitless configurations.

DIMENSIONS:
Height: 11.42in / 290mm
Width: 11.42in / 290mm
Weight: 21lb per 3.28 ft / 9,5kg per meter
Main Tube: 2in / 50mm
Wall Thickness: .08in / 2mm
Braces: .75in / 20mm
Tolerance Free Standard Conical Connector
Main tube wall thickness of .08in

Connecting hardware included – Conical connectors, spigots, cotter pins (8 sets)

Features
Manufactured in our Own Factory!
Allows angles not possible with standard trussing corners
Adjustable lock arm
Conical couplers included
Material: 10mm EN-AWT6 6061 Aluminum

Exterior Dimensions & Weight
12.00″H x 11.42″W x 11.42″L – Weight: 19.00 lbs

Shipping Dimensions & Weight
Box 1 of 1: 14.00″H x 14.00″W x 13.00″L – Shipping Weight: 20.00 lbs
