Technical specs:
– Material: Aluminium EN-AW 6082 T6 (AlMgSi1)
– Included in delivery: 4 half cones, screw M10
– Length: 305 mm
– Width: 305 mm
– Height: 5 mm (without cone)
– Weight: 1,5kg

Please order separately steel pin and saftety clip.

Product Details:

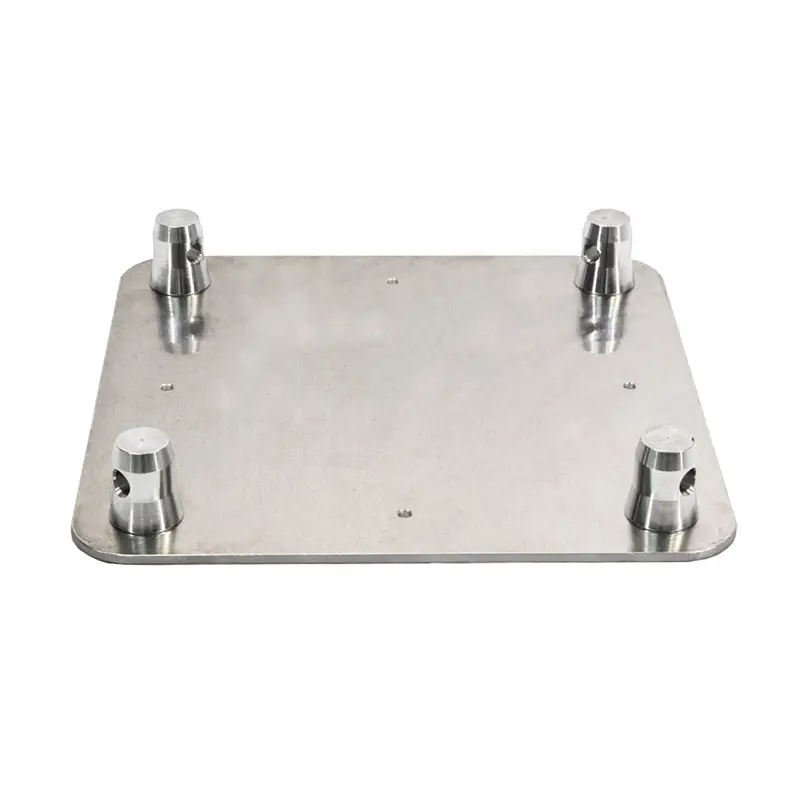

BravoTruss BT 34-WPM – Wall plate male
The BT34 series is one of the most popular trussing systems bravotruss has ever produced. The high load capacity combined with a very low weight are the features of this 29cm series with conical coupler. The advantage of the quick connector system lies in the fact that it closes force-locking the belt tube and allows rapid assembly and dismantling. The four tubes are made of 50mm aluminum tube with a wall thickness of 2mm and give this system an outstanding strength -to-weight ratio. The struts have a diameter of 20 mm with a wall thickness of 2 mm. The system includes only cones.

Optionally the system can be extended with various lengths, corners, T-branches, angles, and circles. Extensive accessories such as hooks, connectors, base plates, wall mounts, spacers and much more solutions will complete the product range.
