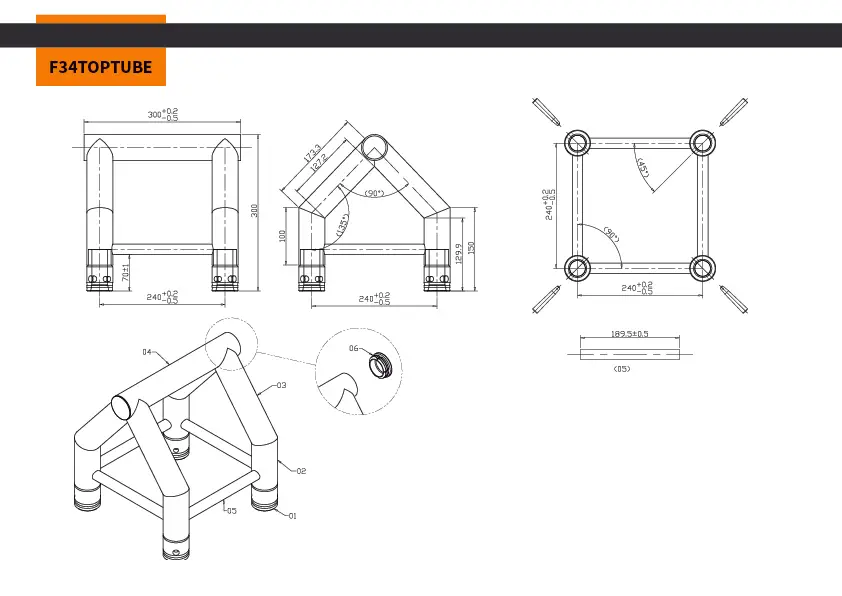

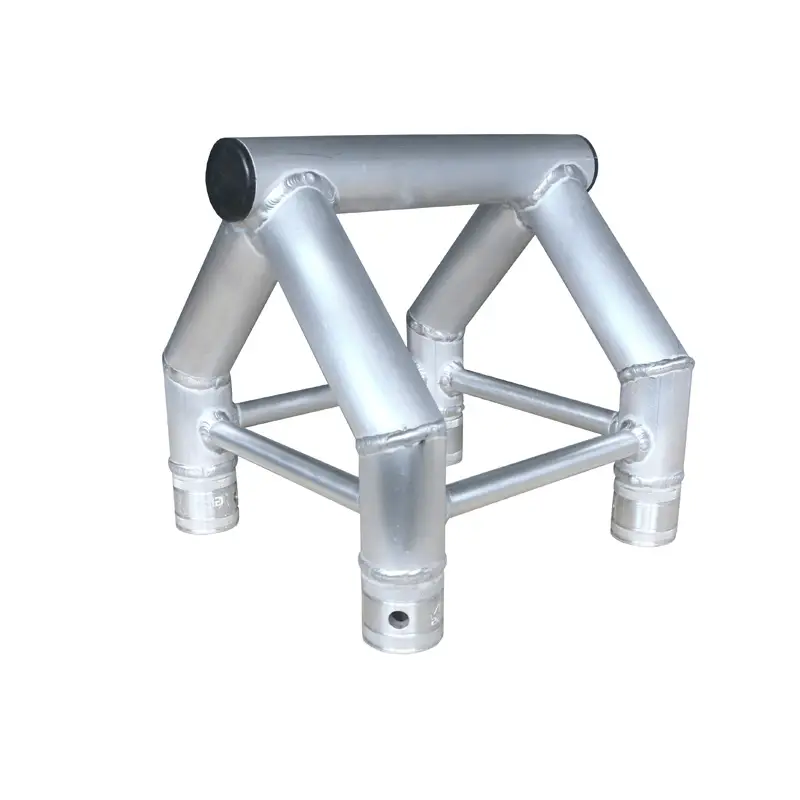

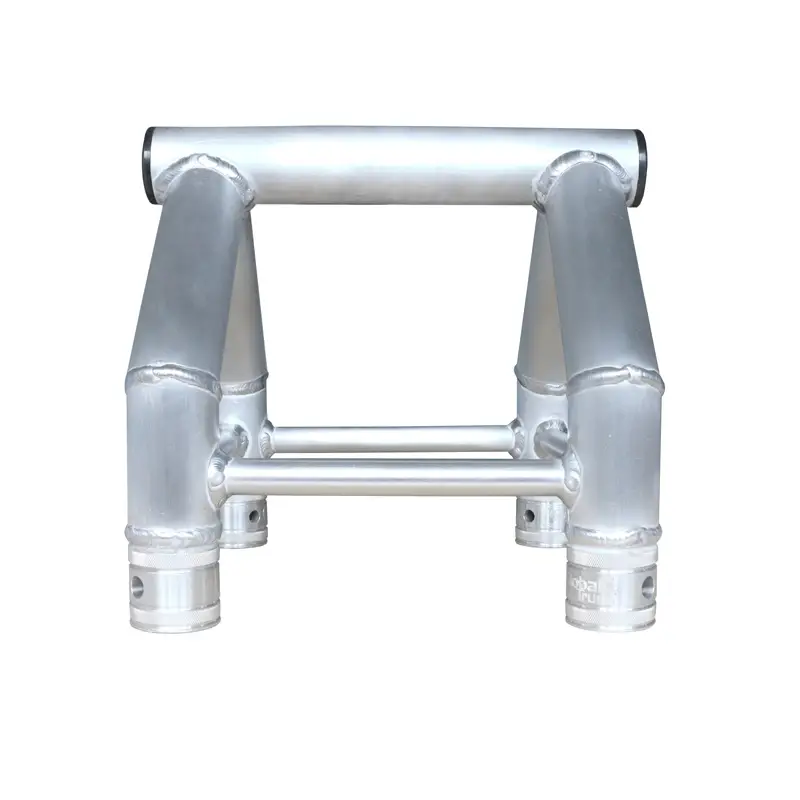

BT34 TOP TUBE

General
Colour Aluminum
TÜV certificate No
Material EN AW 6082 T6

Technical Data
Number of points 4-point
Edge dimension 29 cm
System BT34
Type special part

main pipe
Diameter main pipe 50 mm
Wall thickness main pipe 3 mm

Brace
Diameter Brace 20 mm
Wall thickness Brace 2 mm

Hardware
Dimensions (L/W/H) 290 x 290 x 290 mm
Weight 2,66 kg

Shipping data
Dimensions (L/B/H) 300 x 300 x 300 mm
Weight 2,66 kg
