BT34 Box Corner

Category Tag

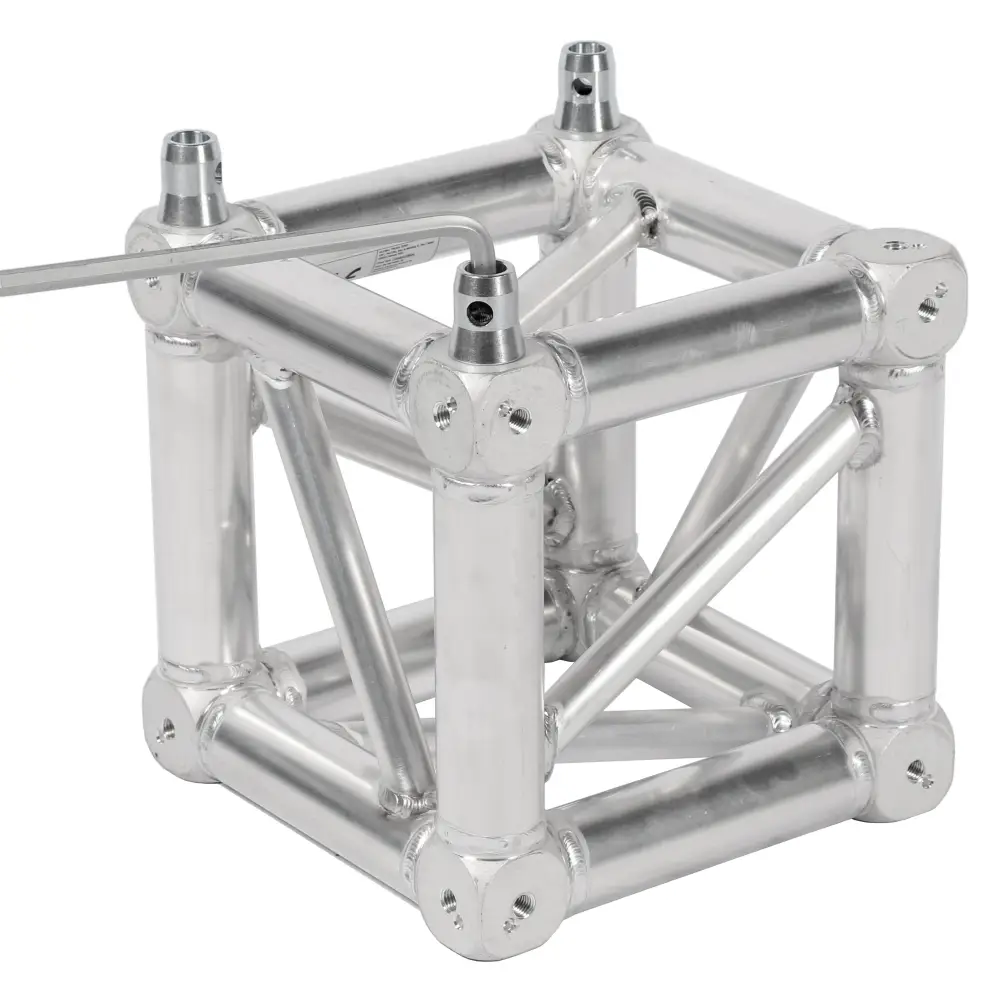

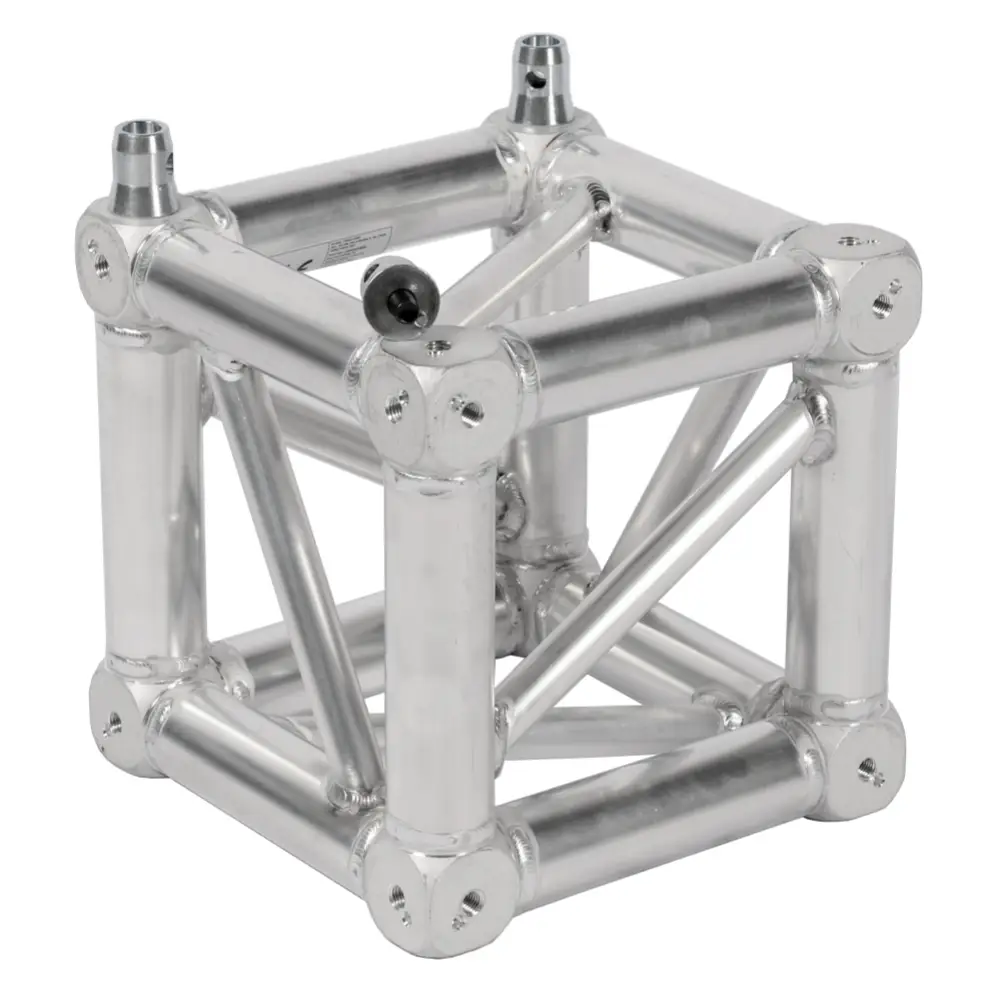

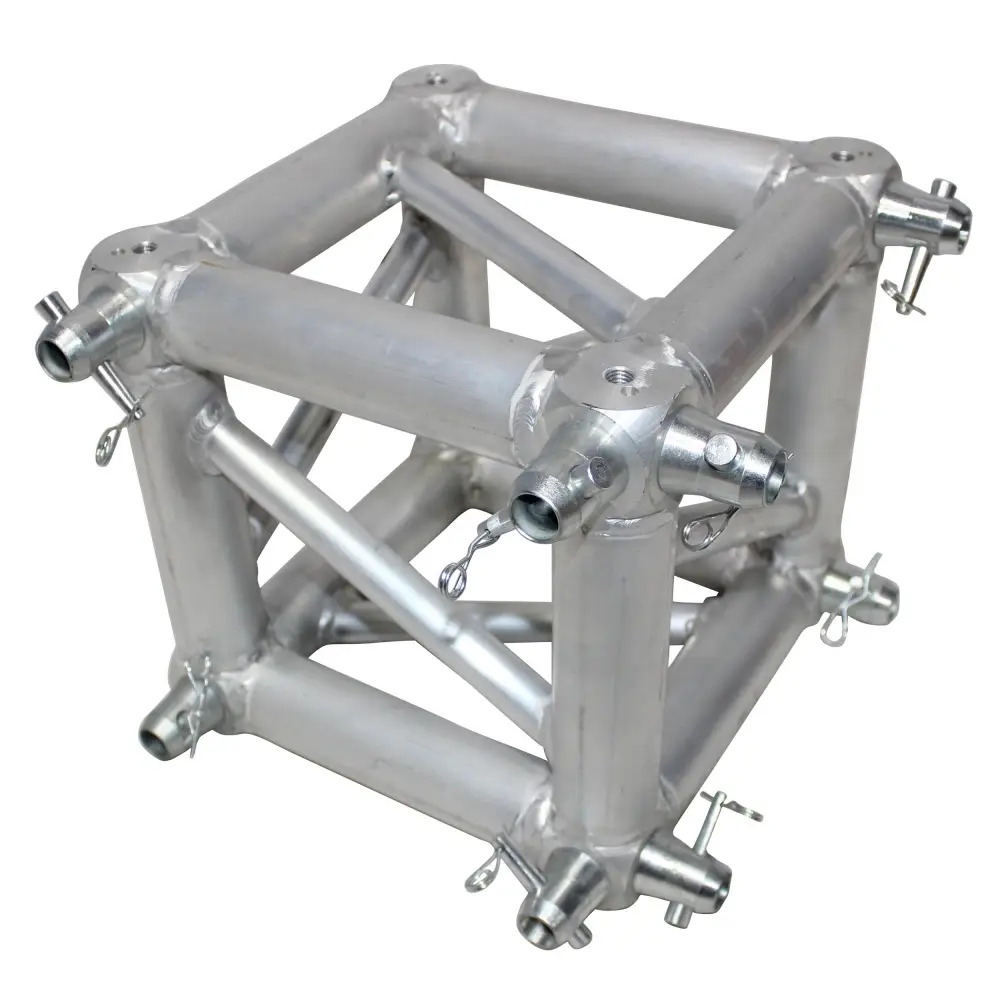

6 Way Square Truss Junction Block – Includes 3 Way 12 Half Conical Couplers

Box corners are the ultimate flexible solution for rental purposes, offering 2-way to 6-way corner connection within one unit. By simply adding extra connections to the prepared cubes, the corner type can be adapted to your needs. Based on its integral structural strength, the box corner offers optimum loading possibilities in any type of construction.

Product Details:

Bravostage provides as much technical specifications as possible to help you decide if this type of equipment is fit for the job. Boxcorners are always part of a structure. Their strength and capacity depend on the size and height of the structure. For help you can contact Bravostage at any time.

The Square Truss Junction Block is a universal connecting point for F34 trusses, and it’s equipped with connecting hardware for use with F34 square truss components.

Advantages
Special extruded profile for optimum strength
Bolted corner cubes to avoid heat affected zones
Flexible in use

At the heart of the system is square truss that utilizes a standard conical connector system, which easily mates with other brands of truss of the same size and connector style, and is available in a variety of lengths to suit your designs. It also works with different types of corners, base plates, connectors and accessories that add stability while expanding on limitless configurations.

Height: 11.42in / 290mm
Width: 11.42in / 290mm
Weight: 21lb per 3.28 ft / 9,5kg per meter
Main Tube: 2in / 50mm
Wall Thickness: .11in / 3mm
Braces: .75in / 20mm
